infrastructure upgrades & technological deployments

Tram substation upgrades in Australia

Melbourne’s Tram Network Substation Upgrade

Melbourne’s tram network is undergoing substation upgrades to support modern, high-capacity trams and improve network reliability.

Key aspects include:

• Technical requirements: New substations convert 6.6-22kV AC to 600V DC using transformers and rectifiers. Modern E-Class trams require 20-30% more power than older models, necessitating infrastructure upgrades
• Environmental considerations:
  • Electromagnetic field (EMF) mitigation measures
  • Native vegetation preservation protocols
  • Graffiti-resistant cladding solutions

ABB AVR Solutions

Main features

• Compact and robust AVR for excitation current
• Separate communication and control processors
• Wide range of built-in control software functions
• Ethernet-based fieldbus interface
• Wide range of power input voltage, for AC and DC input
• Flexible and freely configurable measurements and inputs/outputs (I/Os)

Wide range of applications

• Land-based power plants based on diesel engines, gas or steam turbines and hydro turbines
• Marine: electrical propulsion and auxiliary supply
• Traction: diesel electric locomotives
• Wind: based on direct connected synchronous machines
• Synchronous motors

Key installations:

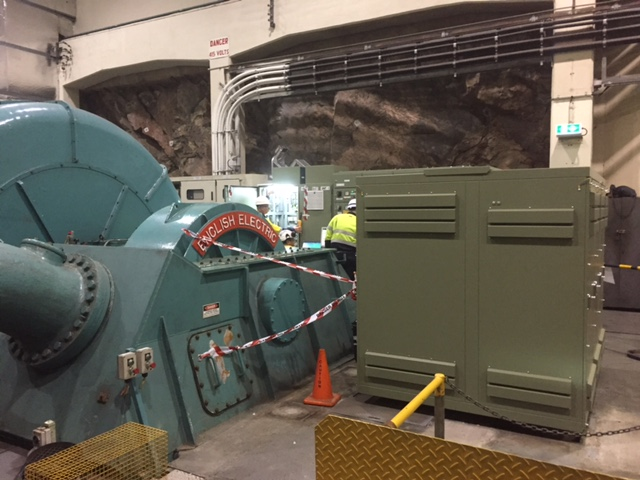

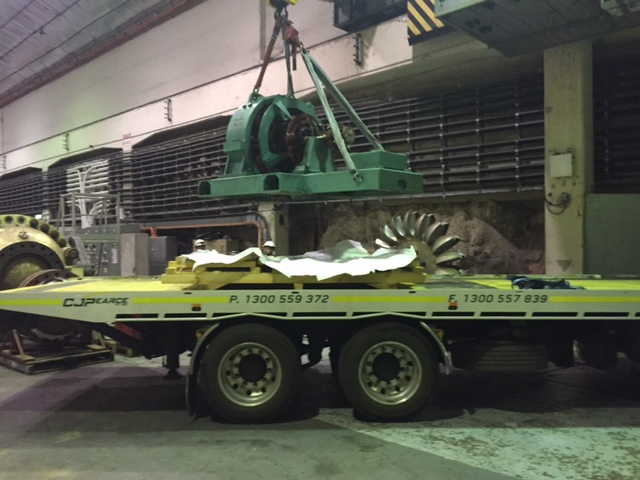

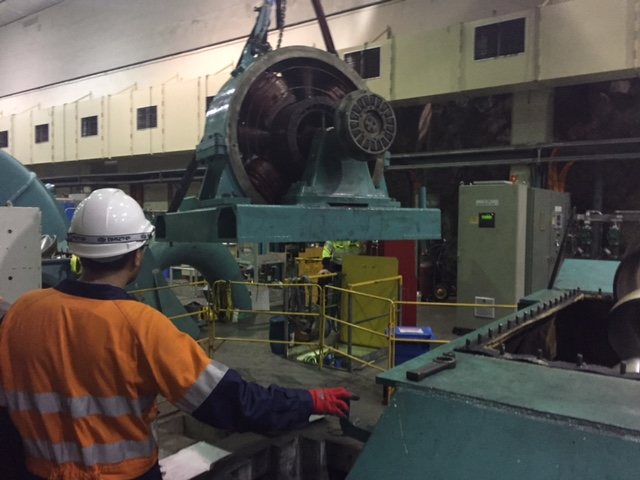

C.J. Pearce Has been involved with more than 30 AVR upgrades at Power Stations around Australia over a period of more than 25 years.

Changing over DC drives at various locations around Australia – Primarily paper & timber mills

DC Drive Modernisation Program

Key features of new installations:

• Deterministic position control for multi-axis synchronization
• Soft-start capabilities reducing mechanical stress
• Integrated IoT monitoring platforms

Australian manufacturers are leading in compact STATCOM solutions:

ABB STATCOM Units

At C.J.Pearce we specialise in providing cutting-edge ABB STATCOM (Static Synchronous Compensator) units to enhance power quality and stability for various industrial applications. ABB’s STATCOM solutions, such as the VArPro™ and PCS 6000, offer dynamic reactive power compensation, ensuring superior performance and reliability.

Key Benefits of ABB STATCOM Units:

• Dynamic Reactive Power Compensation: Instantly compensates for voltage fluctuations, mitigating flicker and correcting power factor.
• Enhanced Operational Performance: Improves efficiency, safety, and precision in industrial processes.
• Modular and Scalable Designs: Flexible solutions ranging from 100 kVAr to 50 MVAr, suitable for various system sizes.
• High Reliability: Proven technology with built-in redundancy and protection systems.
• Rugged Design: Containerized solutions protect sensitive equipment, ensuring low maintenance costs and peace of mind in harsh environments.

Applications:

• Industrial Facilities: Protects against power disruptions, voltage sags, and equipment failures.
• Utilities: Provides voltage support and stabilization, increasing transmission capacity.
• Renewable Energy: Ensures grid code compliance for wind farms and solar parks.
• Railways: Balances loads and corrects power factor for efficient electrification.

Discover how ABB STATCOM units can optimize your power quality and operational performance. Contact us today to learn more!
